- High-quality Material: Corrosion and heat-resistant high-quality 304 stainless steel plate (thickness 0.08 inch) will not react with the material, ensuring the purity of filling while providing excellent durability. Professional automatic argon arc welding process to create seamless and dense welded joints.
- Uniform Stirring & Heating: Powerful pure copper motor (max. speed 36rpm, power 60 watts), T-shaped paddle, and double industrial grade heating tubes (0.75kw*2) provide uniform and efficient stirring and heating for the material, which makes the filling more smooth and efficient.
- Wide Applications: The heating layer can reach 90℃ with water, and the highest heating temperature can reach 300℃ with heat-conducting oil, which allows it to be applied to different materials to meet commercial needs.
- Anti-leakage & Curing: Stainless steel discharge nozzle with a C-shaped heating tube and ball valve control realizes constant temperature heating and manual control of discharge throughout the process, which can effectively prevent leakage and curing.
- High Efficiency: 8gallons capacity, excellent heating (1.5kw), and stirring (60w) nature easily achieves efficient filling of 20-45 bottles per minute, which will greatly save time and effort.
Application
It is used for dissolving and filling creams and liquids in daily chemical, food, and pharmaceutical fields such as lipstick, shoe polish, ointment, petroleum jelly, wax products, perfume, honey, edible oil, juice, beer, beverage, and skin care water.
Specification
Model: YK-30L
Application: Liquid, Paste
Material: 304Stainless Steel, Copper
Color: Silver
Voltage: 110V 60HZ
Plug: US Standard
Capacity: 30L/8gal
Heating Power: 1.5kw(2*0.75kw)
Stirring Power: 60w
Stirring Motor Max. Speed: 36rpm
Power Supply: 2.1kw
Outlet Heating Power: 120w
Certificate: CE
Filling Accuracy: ±1%(Specific Accuracy is Controlled Manually)
Adjustable Temperature: 0-300℃/32-572℉
Assembly Required: Yes
Filling Mode: Manual
Power Sources: Electric Corded
Filling Speed: 20-45 Bottle/min(Depends on Actual Personal Degree of Operation Proficiency)
Process: Automatic Argon Arc Welding. Polishing
Gross Weight: 30kg/66lbs
Net Weight: 25kg/55lbs
Package Size: 46*62*59cm/18.1*24.4*23.2in
Product Size: 53*39*79cm/20.87*15.35*31.3in
Bucket Wall Thickness: 2mm/0.08in
Package Included

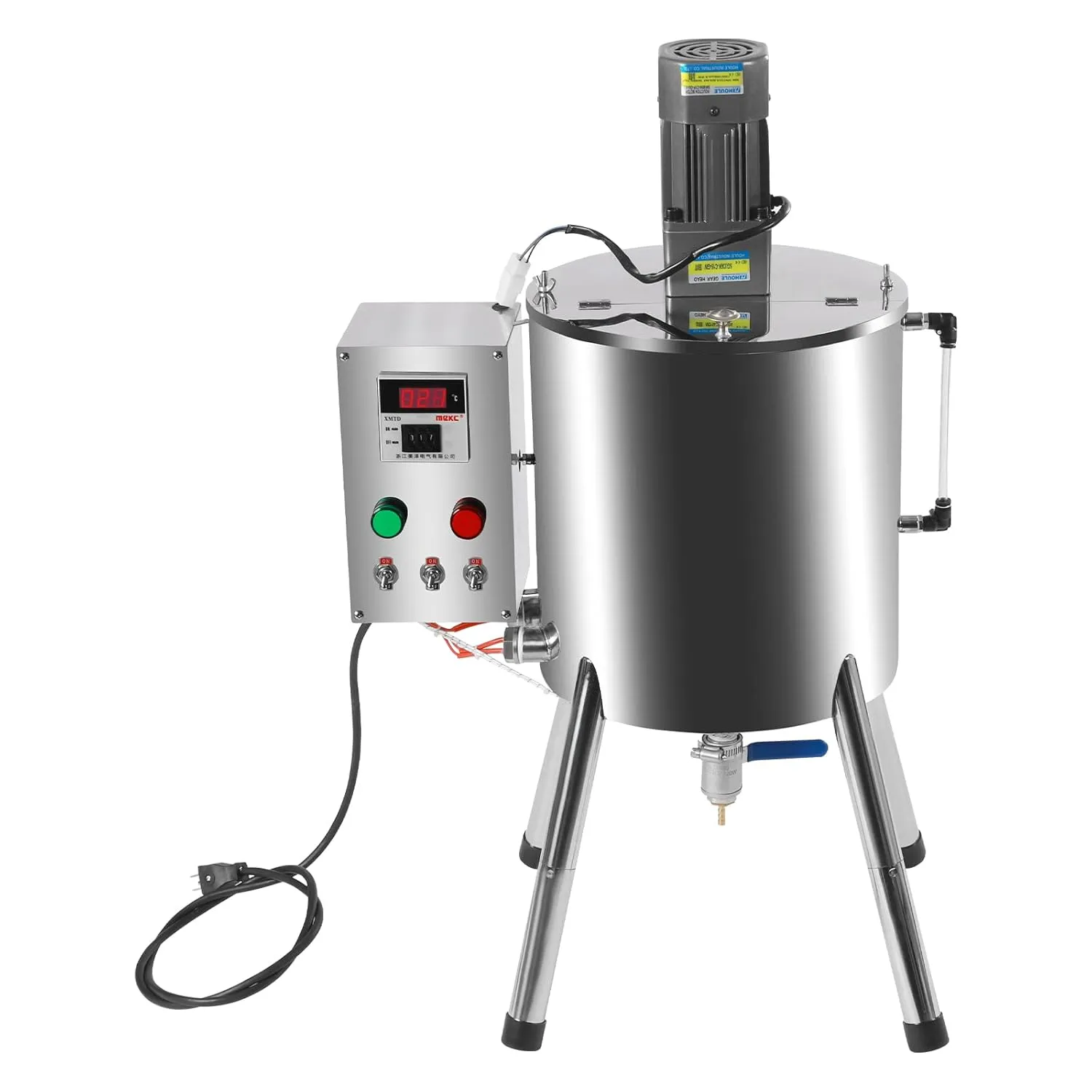

1*Lipstick-filling Machine
1*Stirrer
4*Support Pillars
1*English User Manual
All Accessories Needed for Use
Notes
1. The water filling port is also used to discharge steam, please do not block it.
2. Please clean the drum before use.
3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
- Date First Available : May 16, 2025
- Manufacturer : ROSYOUTH
- Country of Origin : China
